Product Introduction

    TB-DS series is a machine that can be fed by double sheets or single sheet, with the function of top card pasting and bottom card pasting. This device can feed single or double sheets, after pre-creasing, top card pasting, top folding, side gluing, bag tube forming, hole punching, bottom card placement, and bottom gluing, finally output the finished bags.



    Max. Paper Feed Optional: 1600mm      Max. Side Width Optional: 220mm

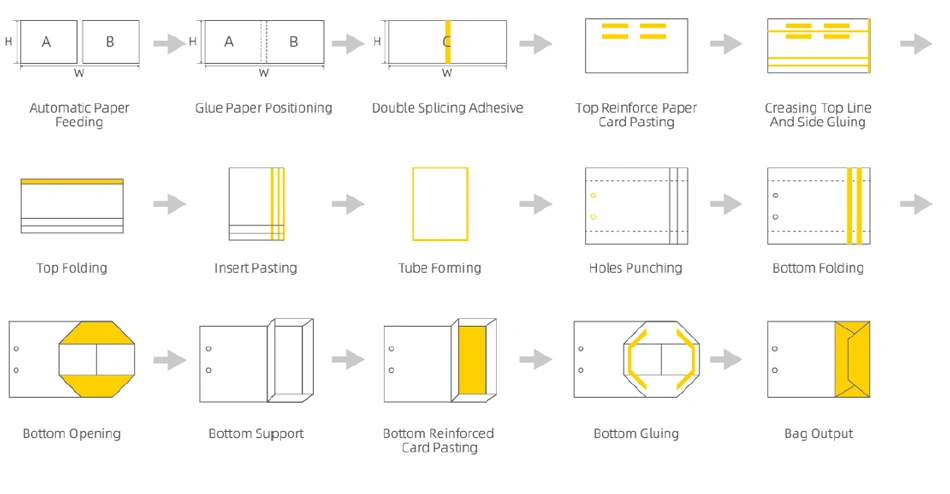

    Working Procedure

    Working Procedure

    /

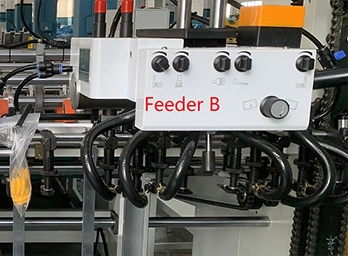

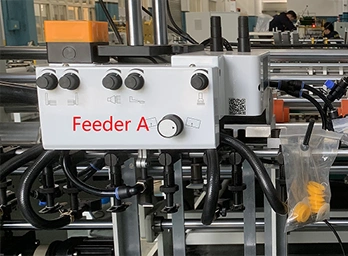

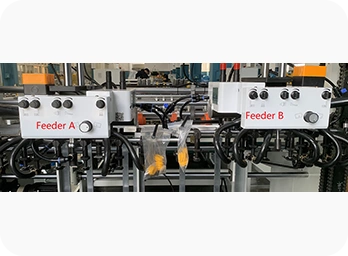

    Step 1: 2 Sets Non stop feeder
    /
    Step 2: Automatic paper feeder
    /

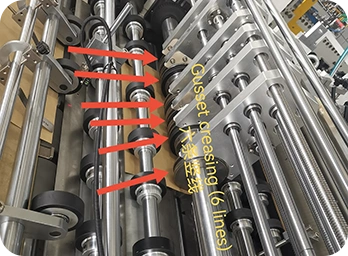

    Step 3: Gusset creasing
    /

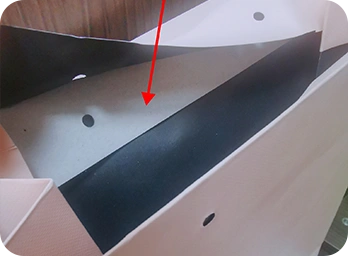

    Step 4: Top reinforced card
    • The length of the top card is controlled by servo motor can be freely adjusted, completely process from the card cutting, card suction and card pasting etc. Precise and efficient, save labor.
    • Sheet type: top reinforced paper card pasting
    • Automatic with top card
    /
    Step 5: Creasing top line and side gluing
    /
    Step6: Top folding
    • Name of patent: Fold the bag mouth device
    • The top folding structure, folding the edge at the bag mouth adopt the lower roller with suction device, the paper is fixed by the lower suction before folded, the running paper will not be shifted and misplaced, provides a perfect and efficient production solution for running coated art paper, kraft paper and other low-gram weight paper.
    /
    Step7: Tube forming
    • The inserting type side gluing for tube forming part can form the bag into a tube neatly and in place after top card pasted and folded with mechanical differential structure, the socket can be fine-tuned during the running process without stopping.
    • Accordion bag tube forming device
    /
    Step8: Bag turning
    • A synchronous Motion of bag overturing device
    • The turning structure of our paper bag machine is more conducive to the uninterrupted conveying of the formed tubes of coated art paper and Kraft paper.
    /
    Step9: Hole panching
    • Handle holes punching device
    • The hole punching device will automatically remove the paper foam after the machine finishes hole punching.
    /
    Step10: Bottom openning
    • Bottom openning device
    /
    Step11: Double station bottom card pasting structure
    • Double station bottom card pasting structure
    • KORO paper bag machine's double-station bottom card pasting structure, is the world's unique double-station bottom card release structure, the suction and release card and positioned card can be synchronized, the bag intothe station by the lower suction air adsorption, open and put the bottom card, both sides of the cylinder to the bottom of the bag back to the original state, four action in one go,and then into the next process.
    If you need special sizes, please consult experts online.
    Contact us
    Electrical Accessories Brands
    Main Technical Parameters
    Model KL-450TB-DS
    Paper A/B Double Sheets Width 320-720 mm / 12.59-28.34 inch
    A/B Double Sheets Length 300-600 mm / 11.81-23.62 inch
    C Single Sheet Width 600-1400 mm / 23.62-55.11 inch
    C Single Sheet Length 300-600 mm / 11.81-23.62 inch
    Paper Weight
    Kraft Paper 140-210g/m²
    Art Paper + PP Laminating 170-250g/m²
    White Cardboard + PP Laminating 170-300g/m²
    Grey Paperboard + PP Laminating 170-300g/m²
      Note: When making low weight paper, it is recommended
      that the unfolded width dimension be less than 120omm/47.24inch
    Top Card Top Card Weight 200-450g/m²
    Top Card Width 170-470mm/6.69-18.5inch
    Top Card Length 20-50mm/0.98-1.96inch
    Top Card Max.Bottom Card L×W 170×440mm/6.69×17.32inch
    Min.Bottom Card L×W 70×190mm/2.75×7.48inch
    Bottom Card Weight 180-450g/m²
    Punching Hole Distance 80, 120, 140mm
    Hole Diameter Φ4, Φ5, Φ6
    Device Working Speed 40-70pcs/min
    Total Power 36KW 380V 50HZ
    Machine Weight 20T
    Machine Dimension 25000×2300×1900mm
    Product Specification
    KL-450TB-DS
    KL-450TB-DS Bag Size
    Model KL-500TB-DS
    A/B Double Sheets Width 320-720 mm / 12.59-28.34 inch
    A/B Double Sheets Length 300-600 mm / 11.81-23.62 inch
    C Single Sheet Width 600-1400 mm / 23.62-55.11 inch
    C Single Sheet Length 300-600 mm / 11.81-23.62 inch
    Paper Weight
    Kraft Paper 140-210g/m²
    Art Paper + PP Laminating 170-250g/m²
    White Cardboard + PP Laminating 170-300g/m²
    Grey Paperboard + PP Laminating 170-300g/m²
      Note: When making low-weight paper, it is recommended that the unfolded width dimension be less than 120omm/47.24inch
    Top Card Weight 200-450g/m²
    Top Card Width 170-470mm / 6.69-18.5inch
    Top Card Length 20-50mm / 0.98-1.96inch
    Max. Bottom Card L×W 170×490mm/6.29×19.29inch
    Min. Bottom Card L×W 70×190mm/2.75×7.48inch
    Bottom Card Weight 180-450g/m²
    Punching Hole Distance 80, 120, 140mm
    Hole Diameter Φ4, Φ5, Φ6
    Working Speed 40-70pcs/min
    Total Power 36KW 380V 50HZ
    Machine Weight 20T
    Machine Dimension 25000×2300×1900mm
