Product Introduction

The HB Series is a fully automatic paper bag machine capable of attaching round rope handles and inserting bottom cards. It is designed for the production of paper bags, either with or without round rope handles. This equipment features the capability to manufacture round rope handles and insert bottom cards inline.

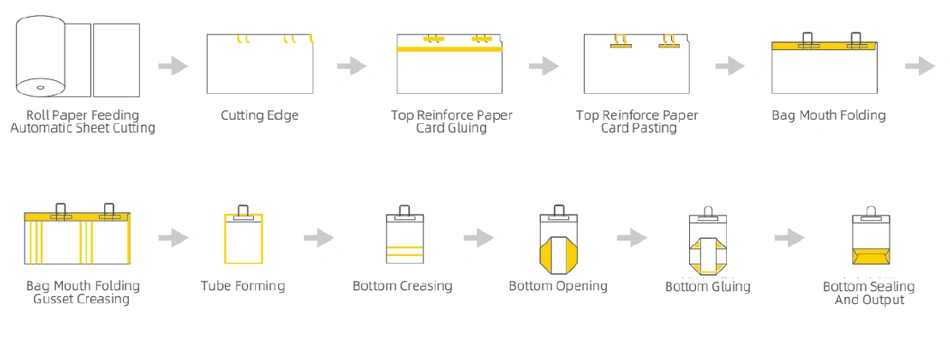

Working Procedure

If you need special sizes, please consult experts online.

Electrical Accessories Brands

Main Technical Parameters

Model		KL-450RHH
Paper	Paper Sheet Width	620-1450mm / 23.62-48.18inch
	Paper Sheet Length	320-600mm / 12.78-23.62inch
	Cutting length	380-620mm
	Paper roll diameter	MAX 1400mm
	Paper Weight	100-180g/m²

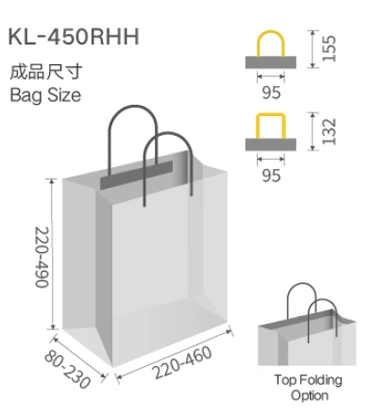

Bag	Bag Mouth Fold Width	40-60mm / 1.57-2.36inch
	Handle Patching Length	190.5mm / 7.5inch
	Handle Patching Width	40-45mm / 1.57-1.77inch
	Patch Paper Weight	120-150g/m²
	Patch Paper Roll Diameter	Φ1200mm / 47.24inch
	Patch Paper Roll Width	80-90mm / 3.15-3.54inch
Twisted	Twisted Rope Handle Diameter	Φ4-6mm / 0.16-0.24inch
	Twisted Rope Handle Height	155mm / 6.1inch
	Twisted Rope Handle Pitch	95mm / 3.74inch
Flat	Flat Handle Diameter	Φ12/15mm / 0.47/0.59inch
	Flat Handle Height	132mm / 5.19inch
	Flat Handle Pitch	95mm / 3.74inch
	Patch Paper Weight	100-120g/m²
Device	Working Speed	70-150pcs/min
	Total Power	45KW 380V 50HZ 4wires 3Phases
	Machine Weight	30T
	Dimension (L×W×H)	18000×6000×3100mm

Product Specification

KL-450RHH

Model	KL-450RHH
Paper Sheet Width	620-1450mm / 23.62-48.18inch
Paper Sheet Length	320-600mm / 12.78-23.62inch
Cutting length	380-620mm
Paper roll diameter	MAX 1400mm
Paper Weight	100-180g/m²
Bag Mouth Fold Width	40-60mm / 1.57-2.36inch
Handle Patching Length	190.5mm / 7.5inch
Handle Patching Width	40-45mm / 1.57-1.77inch
Patch Paper Weight	120-150g/m²
Patch Paper Roll Diameter	Φ1200mm / 47.24inch
Patch Paper Roll Width	80-90mm / 3.15-3.54inch
Twisted Rope Handle Diameter	Φ4-6mm / 0.16-0.24inch
Twisted Rope Handle Height	155mm / 6.1inch
Twisted Rope Handle Pitch	95mm / 3.74inch
Flat Handle Diameter	Φ12/15mm / 0.47/0.59inch
Flat Handle Height	132mm / 5.19inch
Flat Handle Pitch	95mm / 3.74inch
Patch Paper Weight	100-120g/m²
Working Speed	70-150pcs/min
Total Power	45KW 380V 50HZ 4wires 3Phases
Machine Weight	30T
Dimension (L×W×H)	18000×6000×3100mm
