Product Introduction

The World's First Linear Structure of Top And Bottom Reinforced Card Pasting

HB series is a fully automatic paper bag machine with twisted rope handle and bottom card placement function, used to produce paper bags with or without handles. This machine can make twisted rope handle inline and automatic reinforced paper patch.

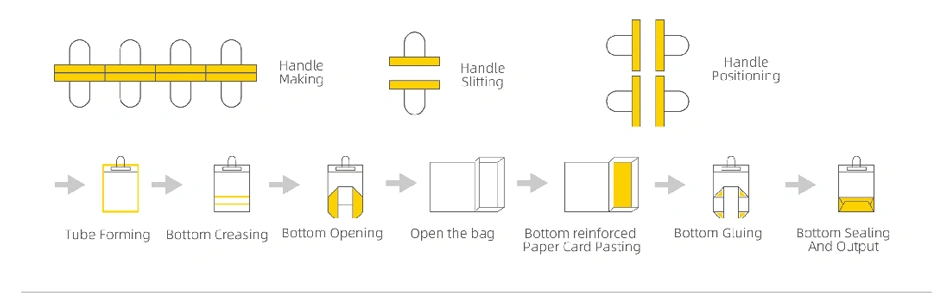

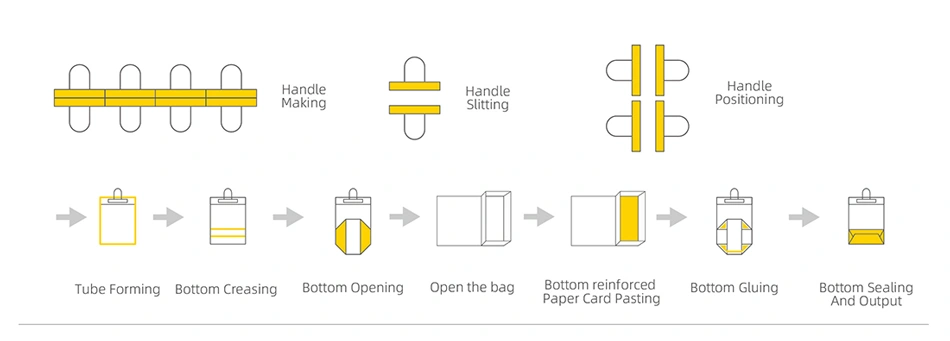

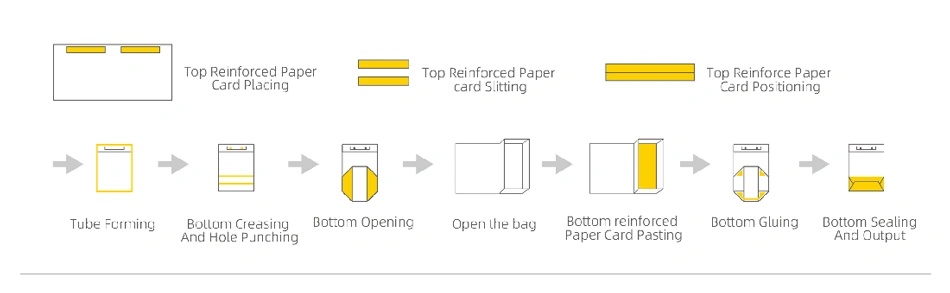

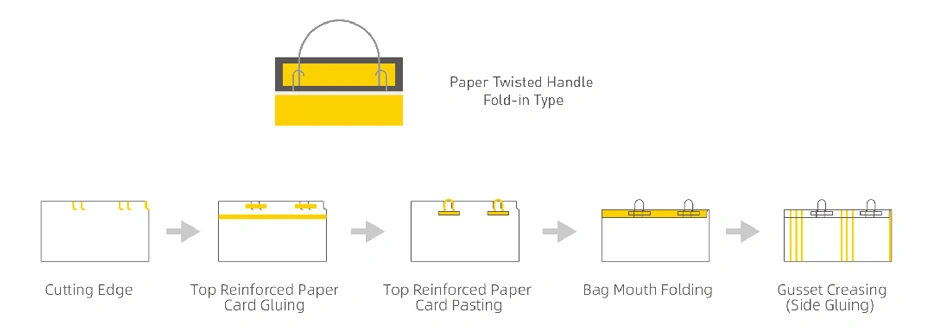

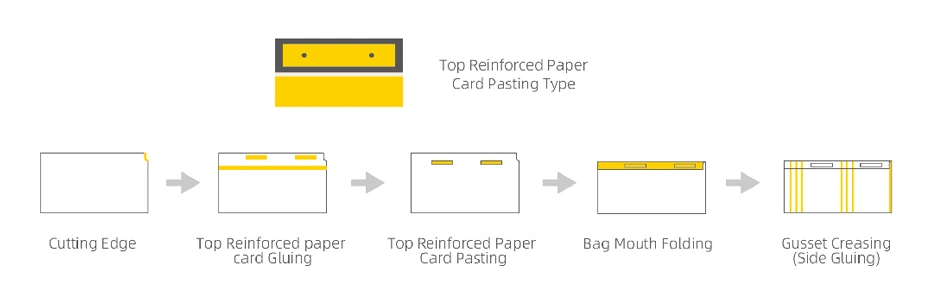

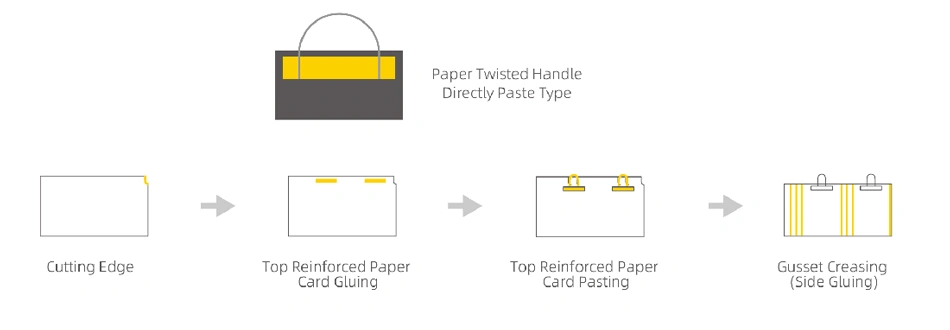

Working Procedure

Handle Making Unit

Handle winding way, make the rope Handle slitting inline
Handle patch cut off, servo motor drive and sensor detect to make sure the precision. Handle patch delivery, sensor positioning to ensure the pasting accuracy onto the bag.

Step 1: Non-stop feeder

Non-stop Auto Speed Feeder
Pre-packed paper feeder to realize nonstop speed paper feeding, greatly save the time to load and adjust raw paper.

Step 2: Automatic paper feeder

Step 3: Handle U-cut knife

Equipped with 6pcs, which could produce bag surface side and gusset side.

Step 4: Top folding unit

Equipped with grating system safety device
Large observation space with hand railing
Easy for operator walking and do certain machine adjustment
The unique copper plate device to prevent the operation of the rope handle stuck to stop

Step 5: Auto Creasing Unit

All the sheet feeding to this machine not need die-cutting in advance. The machine equipped with auto creasing unit.
Equipped with digital number to display to creasing wheel position, easy to adjust and operate

Step 6: Gusset Folding Unit

Adopts copper blade M shape folding gusset making system and special for big bottom size

Step7: Tube side pasting

The pasting side could choose bag surface side (big side) or gusset side (small side). Which could fulfill different kinds of customer bag orders.

Step8: Bottom opening

Name of patent: Bottom opening device

Step9: Hole punching

Name of patent: Handle holes punching device

Step10: Adopts water glue for bottom gluing

Adopts water glue for bottom gluing
Delta grating system
Emergency stop button
Equipped with hole punching unit Diameter 5mm Diameter 6mm. The hole distance is 80mm and 120mm. If special size could be customized before taking the order.

Step11: Double station bottom card pasting structure

KORO paper bag machine's double-station bottom card pasting structure, is the world's unique double-station bottom card release structure, the suction and release card and positioned card can be synchronized, the bag intothe station by the lower suction air adsorption, open and put the bottom card, both sides of the cylinder to the bottom of the bag back to the original state, four action in one go, and then into the next process.
